Your location: Home >Product > Locks > MS8460P-2

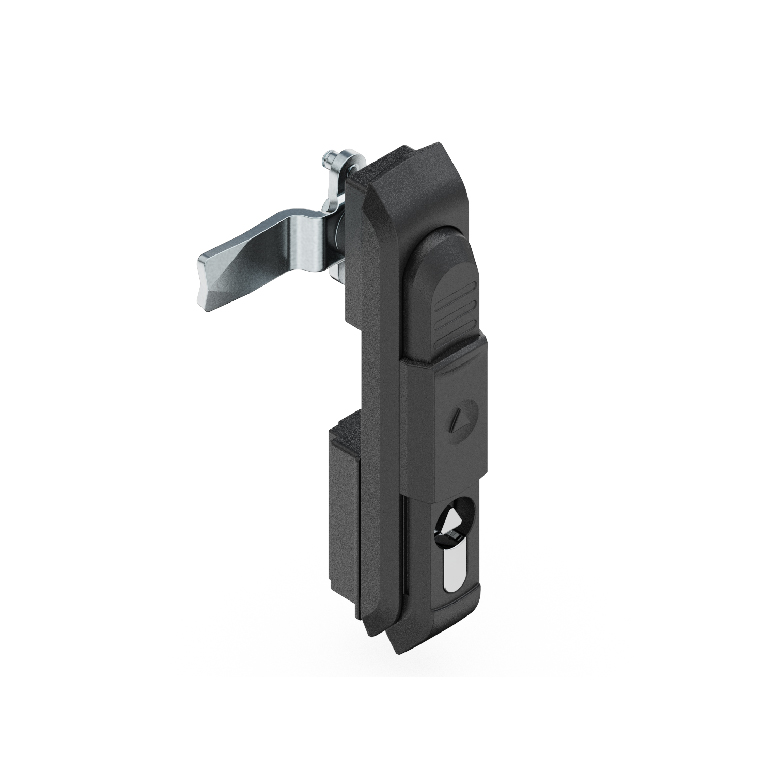

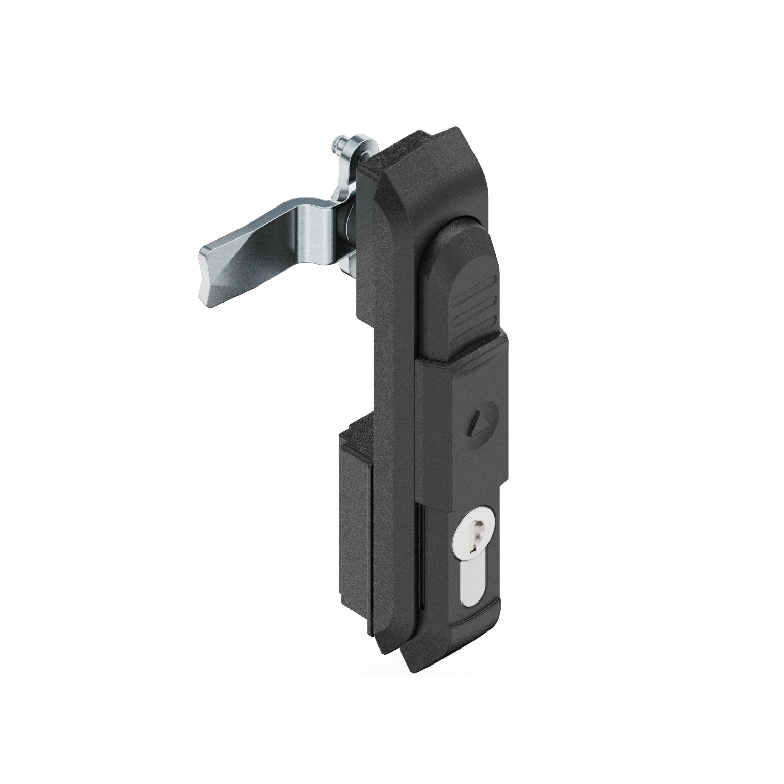

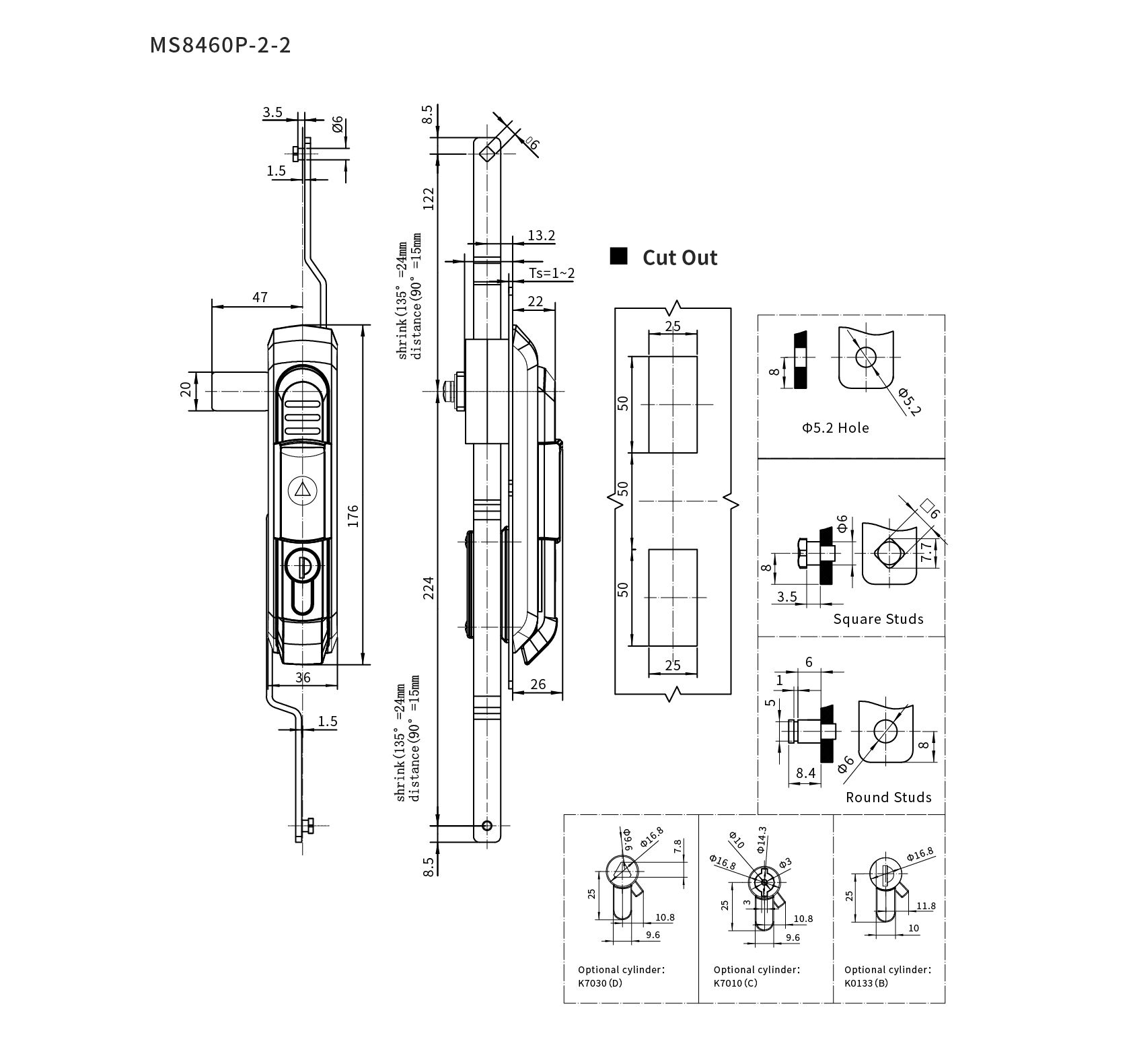

MS8460P-2
[Icon Specification]
Features
● Material:PA body、Zinc alloy shaftZinc plating cam、sand bright chromeplating rack
● Panel thickness:1~2mm
● Finish: Matt black
● cam cutout:8X8
● Remark:shaft cover can be with or without stopper plat are available.

More Products
Product Details

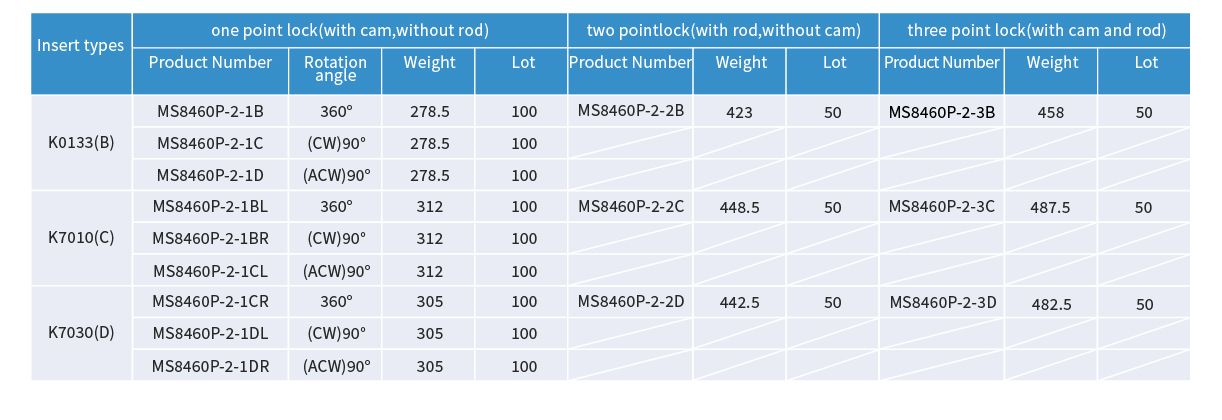

Specifications

Download
MS8460P-2-1B.step MS8460P-2-1BL.step MS8460P-2-1BR.step MS8460P-2-1C.step MS8460P-2-1CL.step MS8460P-2-1CR.step MS8460P-2-1D.step MS8460P-2-1DL.step MS8460P-2-1DR.step MS8460P-2-1系列样本示意图.pdf MS8460P-2-2B.step MS8460P-2-2C.step MS8460P-2-2D.step MS8460P-2-2系列样本示意图.pdf MS8460P-2-3B.step MS8460P-2-3C.step MS8460P-2-3D.step
